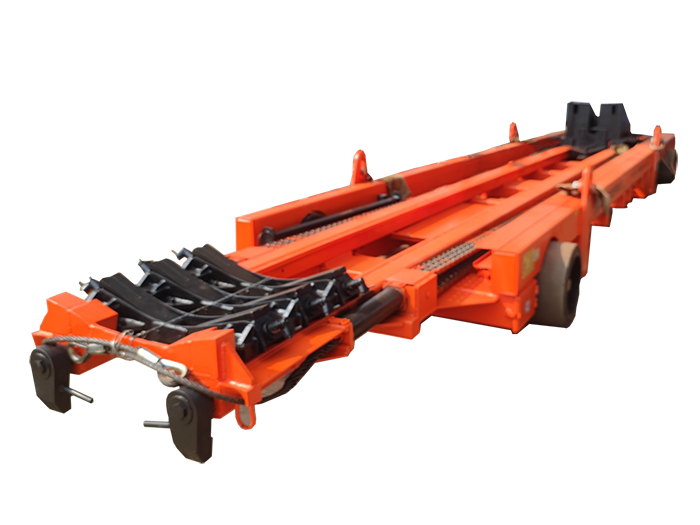

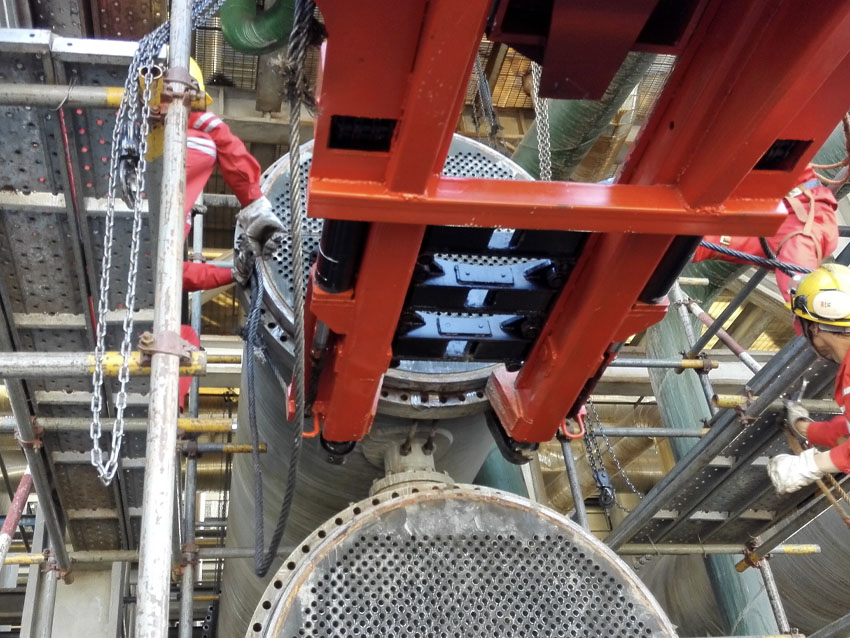

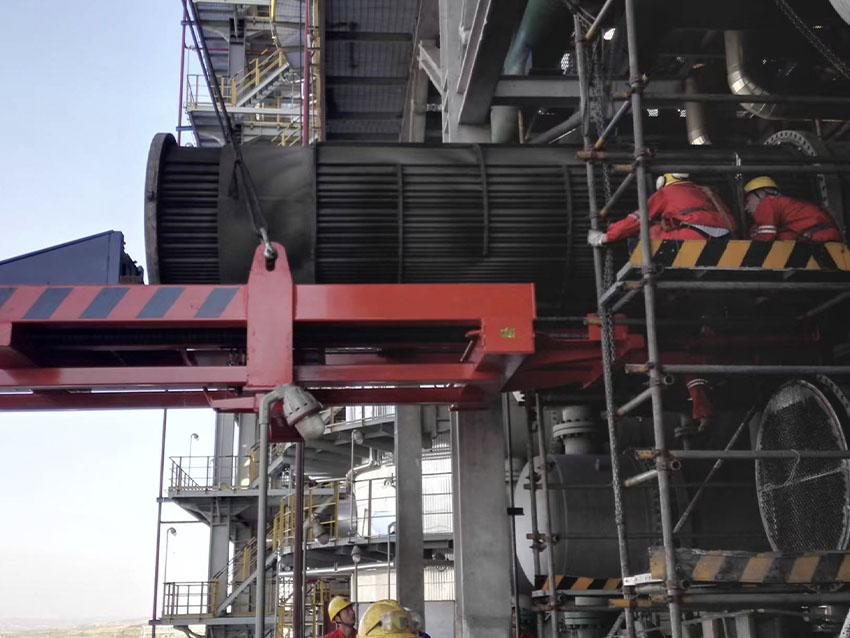

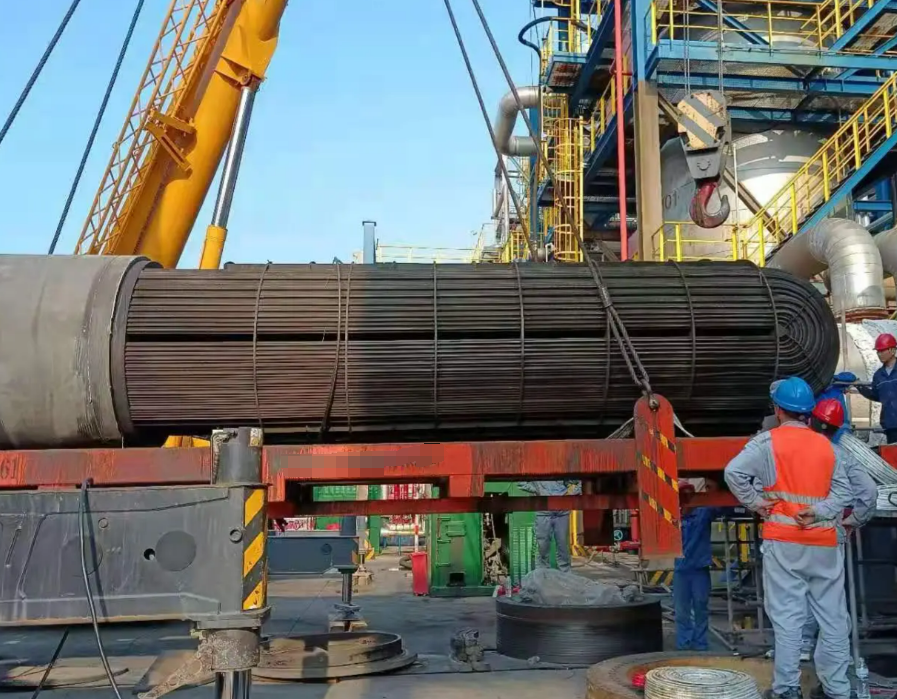

The bundle extractor is also called the bundle puller. The heat exchanger extraction is an important task in the inspection, maintenance and installation of the large petrochemical companies.

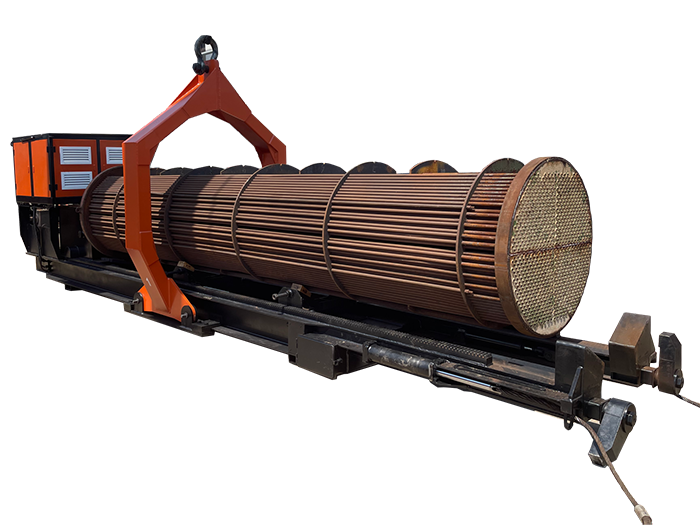

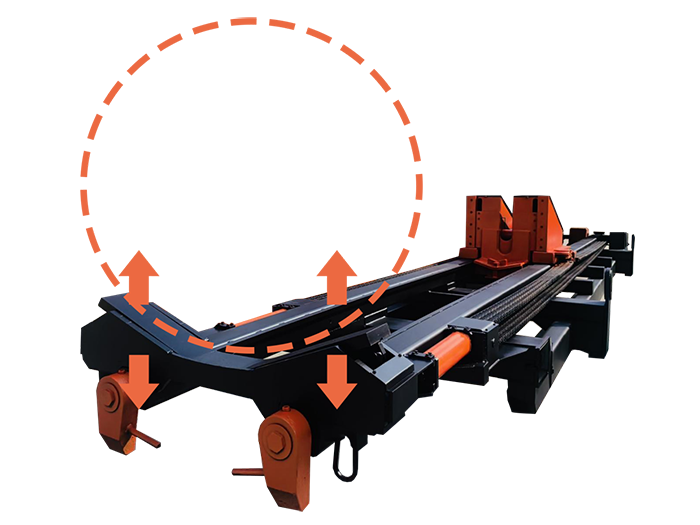

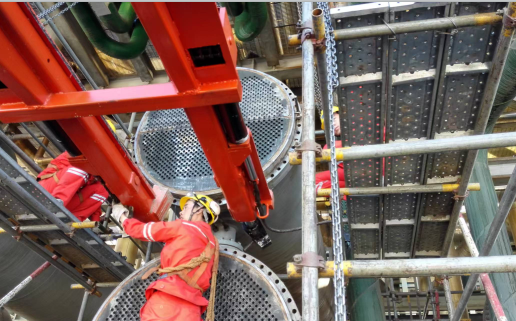

The SD-D series bundle extractor has front hands which support free adjustment in up, down, left and right to accurately align the concentricity of the heat exchanger tube board and the shell, replacing the traditional manual chain adjustment method, achieving faster and more convenient bundle loading operation, greatly shortening the adjustment time to load bundle into the shell, and improving working efficiency. The operation mode has three independent modes: manual, wire control, and remote control, which greatly improves the flexibility, reliability and safety of operation.
Dalian Baiyun Electromechanical Equipment Co., Ltd. mainly produces bundle extractor, bundle cleaner, barrel grabber, drum transporters and other industrial equipment series products.
The bundle extractor is also called the bundle puller. The heat exchanger extraction is an important task in the inspection, maintenance and installation for the large petrochemical companies.

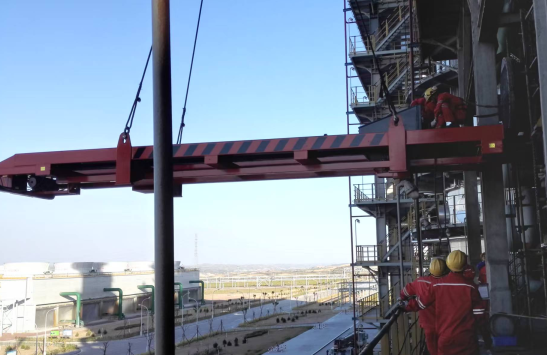

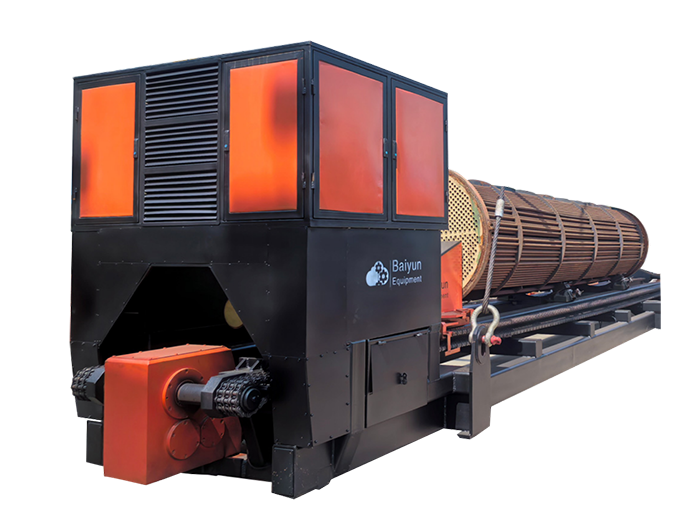

The AE series diesel engine bundle extractor has 53kW of great power, faster and stronger, support one-touch remote startup, there is no need for the extra power source, the operation is convenient and efficient, providing great power anytime and anywhere. The mobile lifting point bundle extractor is more compact than the fixed lifting point model. For example, when extracting the 9m bundle, the fixed lifting point model length is 12.6 meters, while the mobile lifting point model is only 10.6 m. There is no need for the wider equipment frame than the bundle diameter, the small size bundle extractor could extracting large bundle by installing the suitable diameter hanging frame. This also makes it easier for transportation and saving lifting space.
Dalian Baiyun Electromechanical Equipment Co., Ltd. mainly produces bundle extractor, bundle cleaner, barrel grabber, drum transporters and other industrial equipment series products.
The bundle extractor is also called the bundle puller. The heat exchanger extraction is an important task in the inspection, maintenance and installation for the large petrochemical companies.

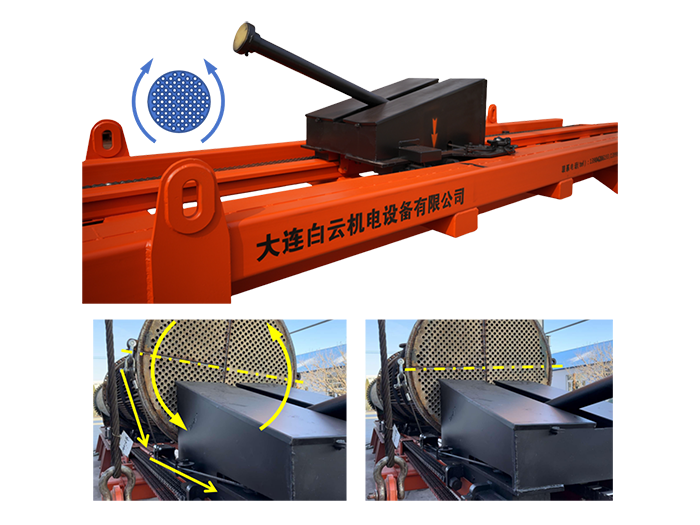

The SD-E series bundle extractor has wire ropes on the both sides of the main travelling crane which can easily rotate the bundle during the bundle loading process, greatly reducing time to align the tube bundle and significantly improving installation efficiency.
Dalian Baiyun Electromechanical Equipment Co., Ltd. mainly produces bundle extractor, bundle cleaner, barrel grabber, drum transporters and other industrial equipment series products.

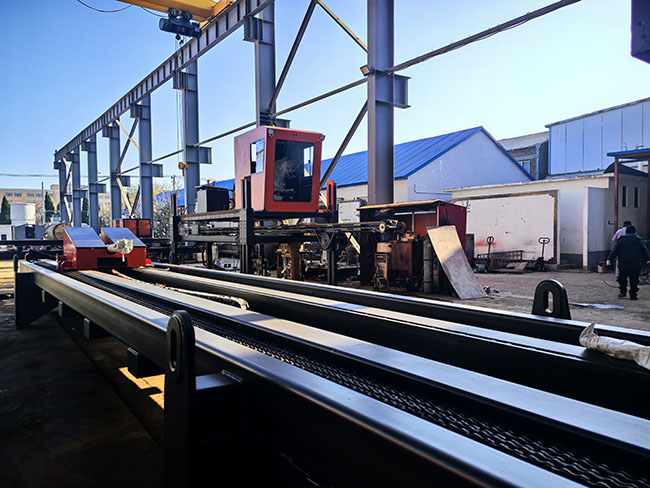

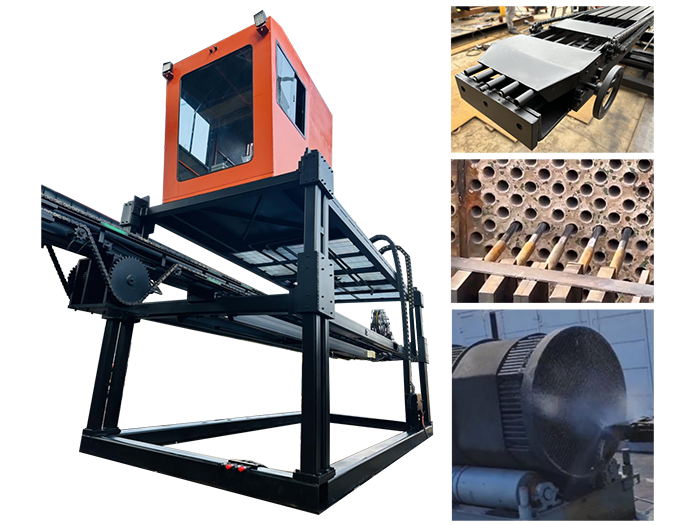

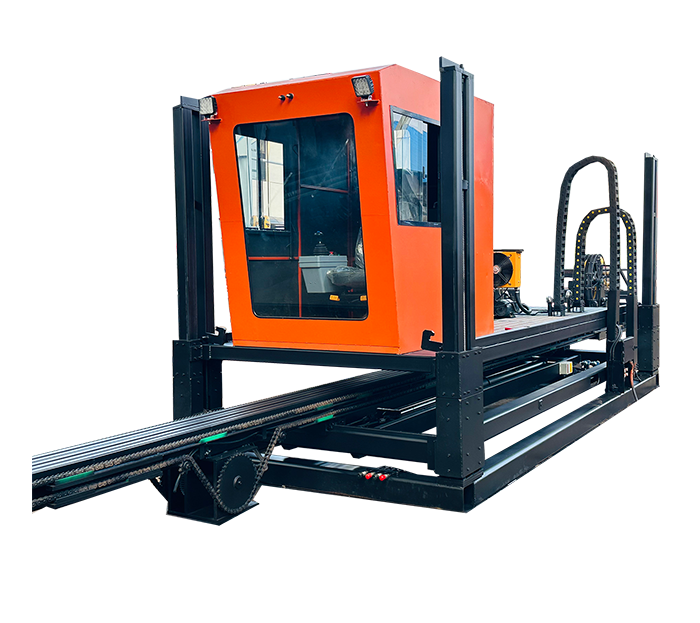

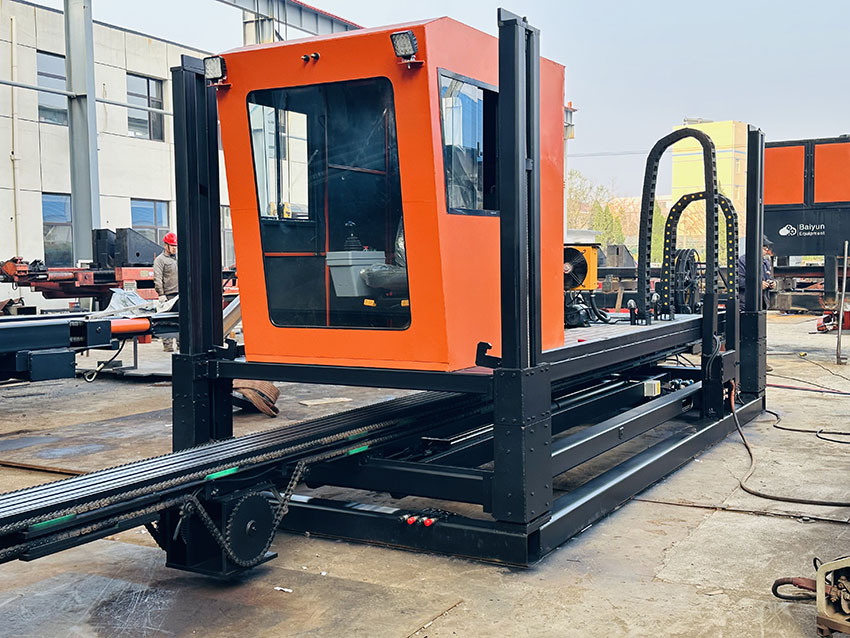

The TBC series tube bundle cleaner greatly improve the efficiency of bundle cleaning. All operations of the whole machine can be completed by only one operator. The equipment has five rigid cleaning guns, which can clean five tubes at the same time with a maximum working pressure of up to 1500bar. The operator can control the up and down, left and right, front and back movements of the cleaning gun and all the movements of the equipment through the cab located at the highest point of the equipment. The high-position design of the cab provides an excellent field of vision, allowing the operator to easily observe the bundle and tube board, ensuring that the cleaning process is accurate and efficient. The TBC tube bundle cleaner has a foldable design, which can be folded to meet the transportation height requirements and it is more convenient for moving.
Dalian Baiyun Electromechanical Equipment Co., Ltd. mainly produces bundle extractor, bundle cleaner, barrel grabber, drum transporters and other industrial equipment series products.
The bundle extractor is also called the bundle puller. The heat exchanger extraction is an important task in the inspection, maintenance and installation for the large petrochemical companies.

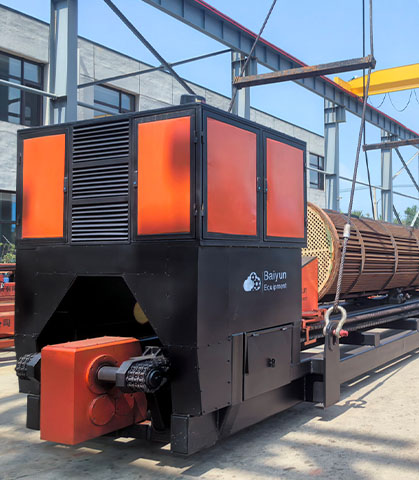

The AE series diesel engine bundle extractor has 53kW of great power, faster and stronger, support one-touch remote startup, there is no need for the extra power source, the operation is convenient and efficient, providing great power anytime and anywhere.
Dalian Baiyun Electromechanical Equipment Co., Ltd. mainly produces bundle extractor, bundle cleaner, barrel grabber, drum transporters and other industrial equipment series products.

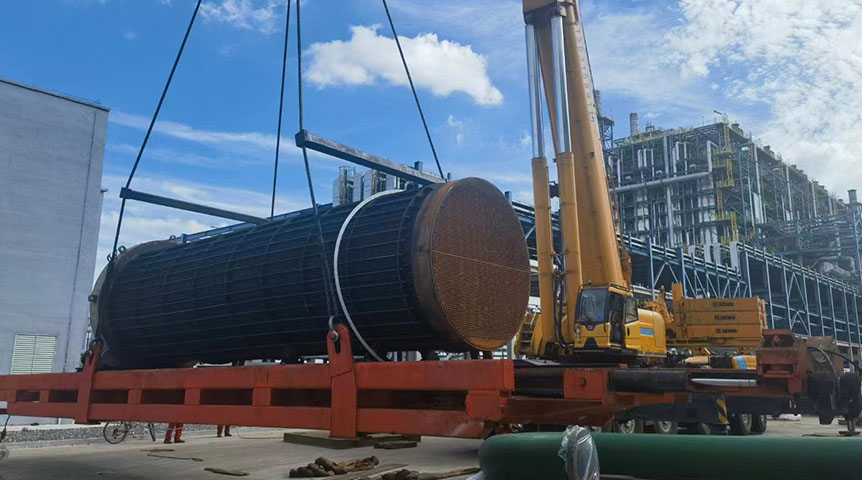

In order to meet the heat exchanger extraction and installation demand of concentrated pressure testing equipment, we independently developed the self-propelled bundle extractor. The equipment has flexible driving capabilities which can be moved to different maintenance sites by itself without crane, that greatly saves the cost of hoisting operations, significantly improves the operating efficiency of the enterprise, and achieves cost reduction and efficiency improvement.
Dalian Baiyun Electromechanical Equipment Co., Ltd. mainly produces bundle extractor, bundle cleaner, barrel grabber, drum transporters and other industrial equipment series products.

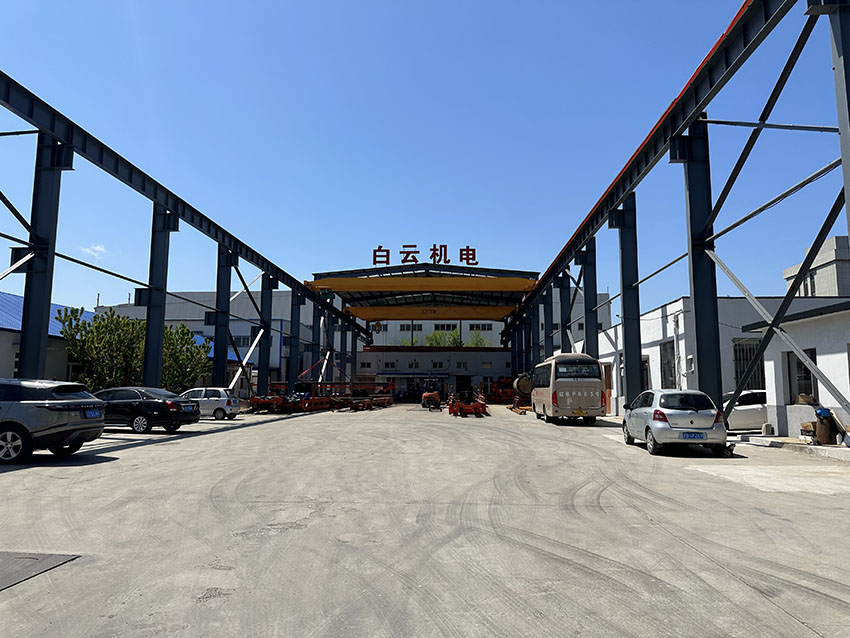

Dalian Baiyun Electromechanical Equipment Co., Ltd established on May 3, 1990, focus on the equipment design and manufacturing. We are experienced provider of integrated industrial solutions, the National High-Tech Enterprise, and Liaoning Province Patent Industry Pilot Enterprise.
As the pioneer and leader in Chinese bundle extractor and bundle cleaner, we have actively engaged in research, development and innovation, forming a core technology system with independent intellectual property rights, gradually growing into a modern enterprise with advanced scientific research capabilities and manufacturing expertise. Through years of unremitting efforts, we have delivery over one thousand bundle extractors, gather extensive experience in collaboration and custom development with world-class oil and petrochemical companies such as China National Petroleum Corporation, China Petrochemical Corporation, British Petroleum Company, Royal Dutch Shell Group, and Saudi Aramco, resulting in the accumulation of mature processes and advanced technologies.
In the long-term development, Dalian Baiyun Electromechanical Equipment Co., Ltd adheres to the operation philosophy of "seek stability, seek practicality, and seek development" and the business principle of "honesty is the basis, trust is the pride" to continuously expand domestic and international markets, establish a positive corporate image among its customers.
